14 inch projected capacitive Touch Screen
Specification:
| 1 | Type | Projected capacitive touch panel |
| 2 | Size | 14inch |
| 3 | Total thickness | 2.45±0.3mm |
| 4 | Outline of cover lens | 200*335 ±0.3mm |
| 5 | Outline of ITO sensor | 195* 330±0.3mm |
| 6 | Viewing area | 176*311 ±0.3mm |
| 7 | Active area | 179*314 ±0.3mm |
| 8 | Interface | I2C |
| 9 | Touch point | 10 points |
| 10 | Transmittance | ＞85% |
| 11 | Hardness | ＞6H |
| 12 | Chipset | Goodix 911 |
| 13 | Working environment | -10~+60℃, 20~85% RH |
| 14 | Storage environment | -10~+65℃, 20~85% RH |
Prodduct process:
-
The working principle of the capacitive screen
-
Small amount of voltage is applied to the electrodes on the four corners . A human body is an electric conductor, so when you touch the screen with a finger, a slight amount of current is drawn, creating a voltage drop.
-
The current respectively drifts to the electrodes on the four corners. Theoretically, the amount of current that
-
drifts through the four electrodes should be proportional to the distance from the touch point to the four corners.
-
The controller precisely calculates the proportion of the current passed through the four electrodes and figures
-
Out the X/Y coordinate of a touch point.
FAQ:
Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q. What is the delivery date for a sample?
A: Usually about 3-6 days for inventory. And bulk order's delivery time is generally 15 to 25 days.
Q. What's payment terms can you accpet?
A: T/T in advance, or 30% as deposite,70% as balance before delivery.
.
Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.
Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.
Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity is sizable.
Application:

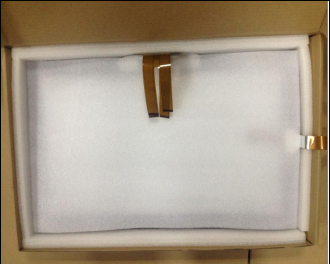

Product physical drawing:
