32 inch LCD Monitor Optical Bonding High Brightness LCD Display

Product Categories
Shenzhen Touch-China Electronics Co.,Ltd.
Contact Now

32 inch LCD Monitor Optical Bonding High Brightness LCD Display

Brand Name : Touch-China

Model Number : ZCC-2366

Certification : RoHS, CE

Place of Origin : China

MOQ : 10pcs

Price : negotiable

Payment Terms : T/T

Delivery Time : 18 days

Packaging Details : standard export package

Size : 32 inch

Structure : Touch panel+LCD

Chipset : ILItek， Weida

Interface : USB

Working environment : -10℃-60℃

Storage environment : -10℃-65℃

Contact Now

27 inch optical bonding LCD & touch panel for gaming machine and KIOSK



Product Specification:

1 Type  Projected capacitive touch panel
2 Size  32 inch
3 OD of cover lens  641.8*382.23mm
4 VA of cover lens  599.6*338.15mm
5 AA of ITO sensor  601.6*340.15mm
6 OD of ITO sensor  633.8*367.81mm
7 Total thickness  3.3mm
8 OS supported  XP, Win7, Win8, Win10, Android, Linux, WCE
9 Surface hardness  more than 7H
10  Transmittance  more than 85%
11  Touch point  1 to 10 points based on the OS used.
12  Working environment  -10-60℃
13  Storage environment  -10-65℃

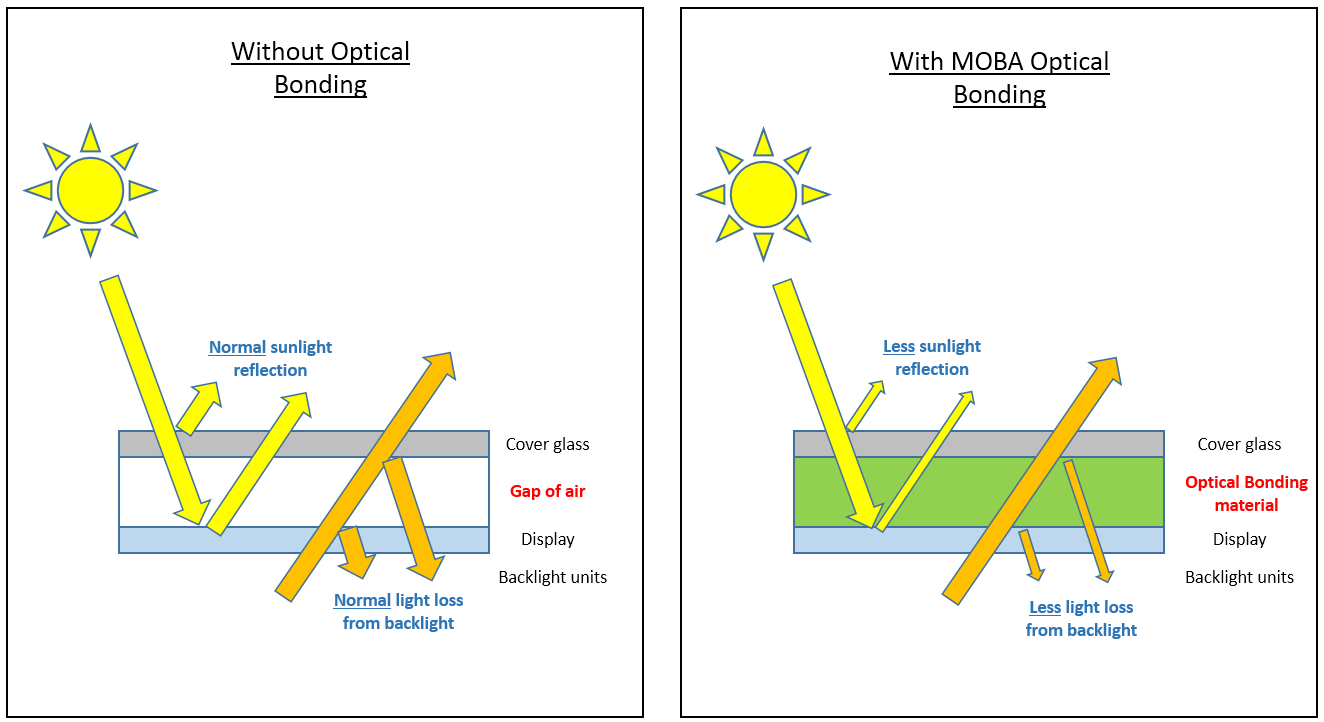

Optical bonding technology: Optical glue is used to assembly LCD and touch panel together.





Development process of optical bonding products.

  • Receive customer's LCD samples.
  • Evaluate LCD structure and and check the thickness of LCD bezel sheet.
  • Offer quotation for customer's confirmation.
  • Samples are made for confirmation
  • Trial production.
  • Mass production.



Features of optical bonding products

  • Since there is no gap between LCD and touch panel after assembly, dust and  fog can't go inside the module.
  • There will be low interference of LCD to touch panel.
  • Vivid and clear crystal display performance than ordinary bonding method.
  • Improved strongness, vibration resistance of TFT module.

32 inch LCD Monitor Optical Bonding High Brightness LCD Display



Lead time



    for samples

  • Touch panel: 15 days after PO.
  • Optical bonding: 3-5 days after touch panels and LCD get ready.

    for mass production

  • Touch panel: 18 days after PO.
  • Optical bonding: 5-8 days after touch panels and LCD are made.






Product Tags:

touch panel capacitive



multi touch panel
