High Resolution Optical Bonding LCD 10.1 Inch Atmel Chip Fog Resistance Anti - Radiation
Ordinary adhesive bonding: Use double sided adhesive to bond LCD and touch panel.
Optical bonding technology: Use optical glue to bond LCD and touch panel without air gap.
Ordinary adhesive bonding Optical bonding
Development process of optical bonding products.
- Receive customer's LCD samples.
- Evaluate the structure and thickness of bezel sheet.
- Provide quotation.
- Make samples for confirmation.
- Trial production.
- Mass production.
Features of optical bonding products
- Dust, fog resistance.
- Low interference of LCD to touch panel
- Vivid and clear crystal display performance
- Improved strongness, vibration resistance of TFT module.
Lead time
For samples
- Touch panel: 15 days after PO.
- Optical bonding: 4-6 days after touch panels and LCD get ready.
For mass produciton
- Touch panel: 15 days after PO.
Optical bonding: 5 days after touch panels and LCD get ready
FAQ:
Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q. What's payment terms can you accpet?
A: T/T in advance, or 30% as deposite,70% as balance before delivery.
Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.
Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.
Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity is sizable.
Q:Does the product support customization?
A:Of course
Application:

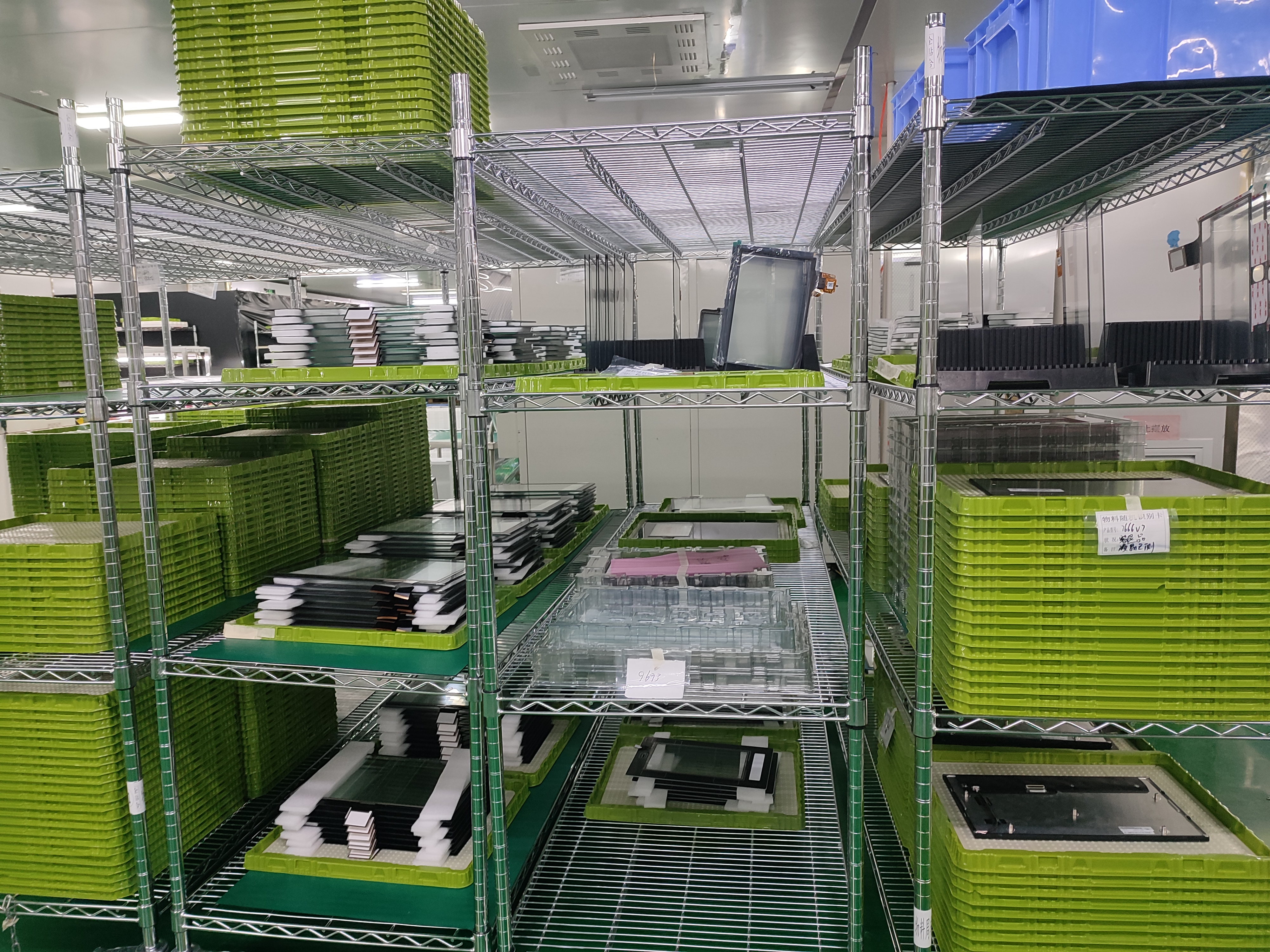

Product production environment:
